Shrimp farming Hypochlorous Acid Generator

SHC-1000 Hypochlorous Acid Generator - Generate Hypochlorous Acid (HOCL) up to 500 ppm


SHC-1000 Hypochlorous Acid Generator is using the self-developed non-diaphragm electrochemical technology, the safe, effective, non-toxic, non-irritating and environmentally friendly hypochlorous acid disinfection water in the range of 3-500ppm can be quickly and efficiently prepared in 1-3 seconds after starting the machine.


Model No.:                   SHC-1000

Machine Size:               800*380*1500mm

Water Production:        1000L/hour

Concentration PPM:     3-500ppm

PH Concentration:        5.0-6.5

ORP:                             >800mv

  Contact Now
Product Details

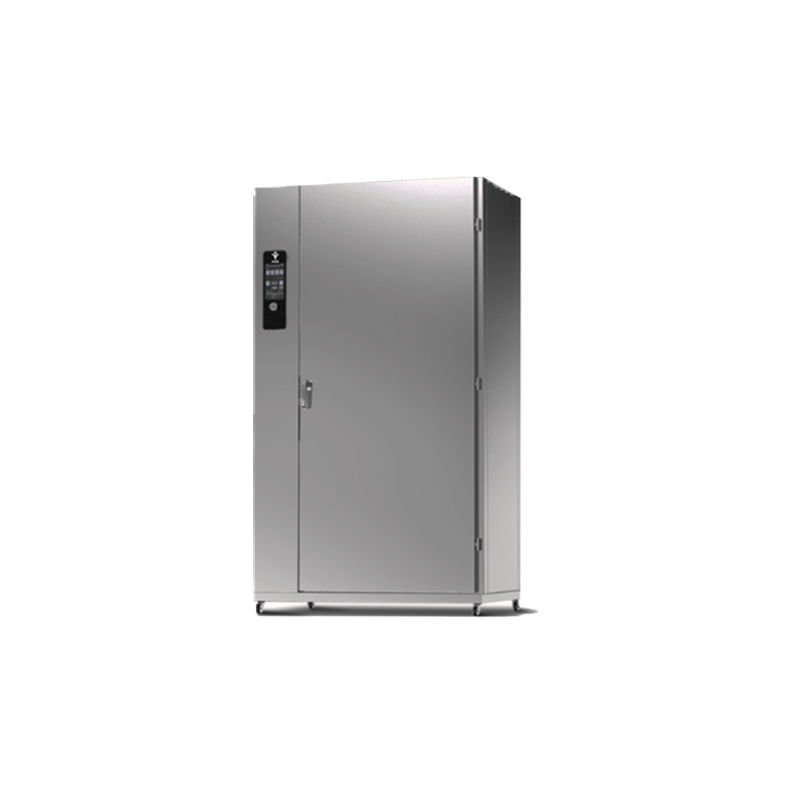

Hypochlorous Acid Generator-SHC-1000


hocl machine.png


Advantage:


* Safe:

In completely compliance with the national standards from <Hygienic requirements for disinfectants with chlorine>, <Hygienic requirements for acidic electrolyed water generator>.


* Efficient:

1) Sterilization rate 99.99%;

2) Sterilization time: within 1minute.


* Environmently Friendly:

1) The pH value is between 5-6.5, it is slightly acidic, colorless, non-irritating, non-toxic, safe, harmless and no harm to the skin;

2) It ends with water.


*Convenient and Economic:

Open and use, cleaning and disinfection two-in-one


*Multiple Functions:

Sterilization, preservation, deodorization, pesticide residue removal, biofilm removal


Scope of Application:  Aquaculture Application


Hypochlorous Acid Generator.jpg


The hypochlorous acid generated by the Shine hypochlorous acid generator has the characteristics of high efficiency, broad spectrum, degradability, no residue, green safety, can kill all kinds of bacteria, and can be used for aquaculture in various water bodies.


SHINE systems are compact and easy to install.  Systems are designed to generate Hypochlorous Acid Water on-site and on-demand from an additive made yourself with just NaCl and water.


1. The hypochlorous acid produced by the Shine hypochlorous acid generator can penetrate the cell membrane and oxidize from the inside, thereby killing bacteria and removing existing bacteria in the water body. And inhibit its no longer growth, low cost, non-toxic and harmless.


Aquaculture Application Hypochlorous Acid Generator.jpg



2.  Fish farming


It can effectively reduce the stress response of fish due to the replacement of sterilization and disinfection drugs, and solve the problems of water pollution, microbial growth, and excessive bacteria caused by daily excretion of fish. After observation, hypochlorous acid also has certain anti-inflammatory and oxygen-supplementing effects.


Aquaculture Application Hypochlorous Acid Generator.jpg


3. Shrimp farming


The advantages of using hypochlorous acid disinfectant for breeding:


Different stages of shrimp farming (hatchery etc.): 200% 30% to 60% do not require additional antibiotics;

Improve water quality, check water pH and algae growth,

Better yield: increased from 2-3 tons per pond to 5-7 tons;

Short growth cycle: 120-160 days to 70 days;

Due to the short growth cycle, the yield can be increased year by year;

Improve feed conversion rate;

Effective control of viral and bacterial diseases during the shrimp growing season;

All of the above improvements resulted in a healthy appearance and size of the shrimp;


Aquaculture Application Hypochlorous Acid Generator.jpg




Products Parameter:


Concentration PPM

3-500ppm

Flow

1000L/hour

Available chlorine concentration

3-500mg/L

Power requirements

AC220V 50Hz

Power

1200W

Current setting value

0.1-2.2A

Electrolyte

dilute HCL

Water inlet pressure

0.15Mpa---0.25Mpa

Electrolyzer life

6000 hours

Size

800*380*1500mm





Available chlorine concentration testing video


pH value testing video



Our Factory:


Factory of hypochlorous acid generator.jpg

Shipment of Hypochlorous Acid Generator.jpg


Customers Visiting:

Shipment of Hypochlorous Acid Generator.jpg



Qualification Patent:


Qualification patant of Hypochlorous Acid Generator.jpg
