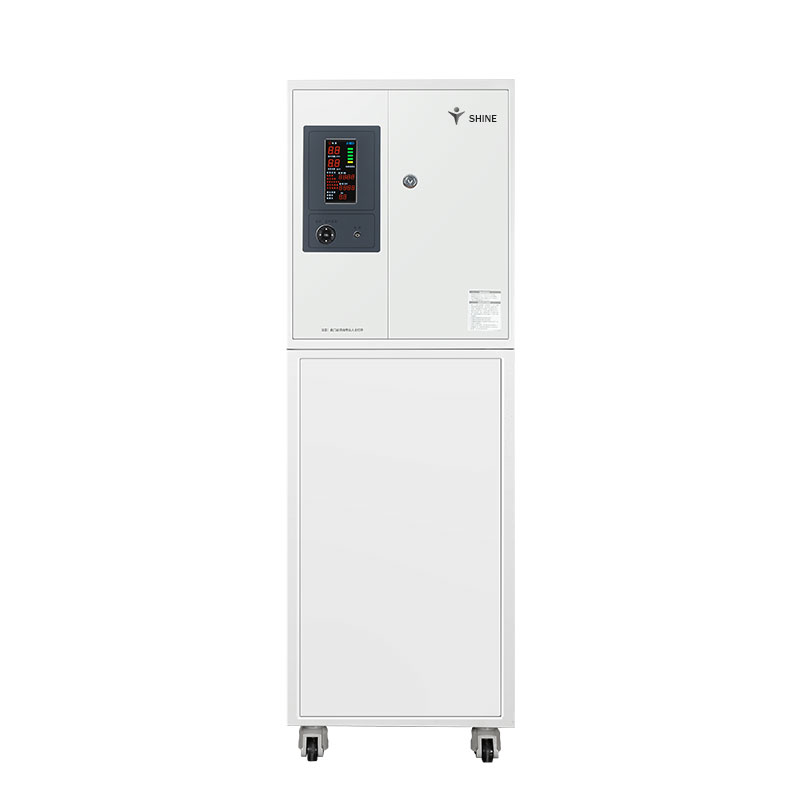

Hypochlorous Acid Generator SHC300Y

SHC-300Y Hypochlorous Acid Generator - Generate Hypochlorous Acid (HOCL) up to 500 ppm


SHC-300 Hypochlorous Acid Generator is using the self-developed non-diaphragm electrochemical technology, the safe, effective, non-toxic, non-irritating and environmentally friendly hypochlorous acid disinfection water in the range of 3-500ppm can be quickly and efficiently prepared in 1-3 seconds after starting the machine.


Model No.:                   SHC-300Y

Machine Size:               450*350*1300mm

Water Production:        300L/hour

Concentration PPM:     3-500ppm

PH Concentration:        2.0-6.5

ORP:                             >800mv


  Contact Now
Product Details

Hypochlorous Acid Generator-SHC-300Y  Hypochlorous Acid Generator5.jpg

Advantage:


* Safe:

In completely compliance with the national standards from <Hygienic requirements for disinfectants with chlorine>, <Hygienic requirements for acidic electrolyed water generator>.


* Efficient:

1) Sterilization rate 99.99%;

2) Sterilization time: within 1minute.


* Environmently Friendly:

1) The pH value is between 5-6.5, it is slightly acidic, colorless, non-irritating, non-toxic, safe, harmless and no harm to the skin;

2) It ends with water.


*Convenient and Economic:

Open and use, cleaning and disinfection two-in-one


*Multiple Functions:

Sterilization, preservation, deodorization, pesticide residue removal, biofilm removal



Scope of Application:


Applicatoin of Hypochlorous Acid Generator.jpg


Product application video


1. Public transportation area: reception desks, hallwalls, grounds, waiting rooms, toll surfaces, canteens and toilets etc.

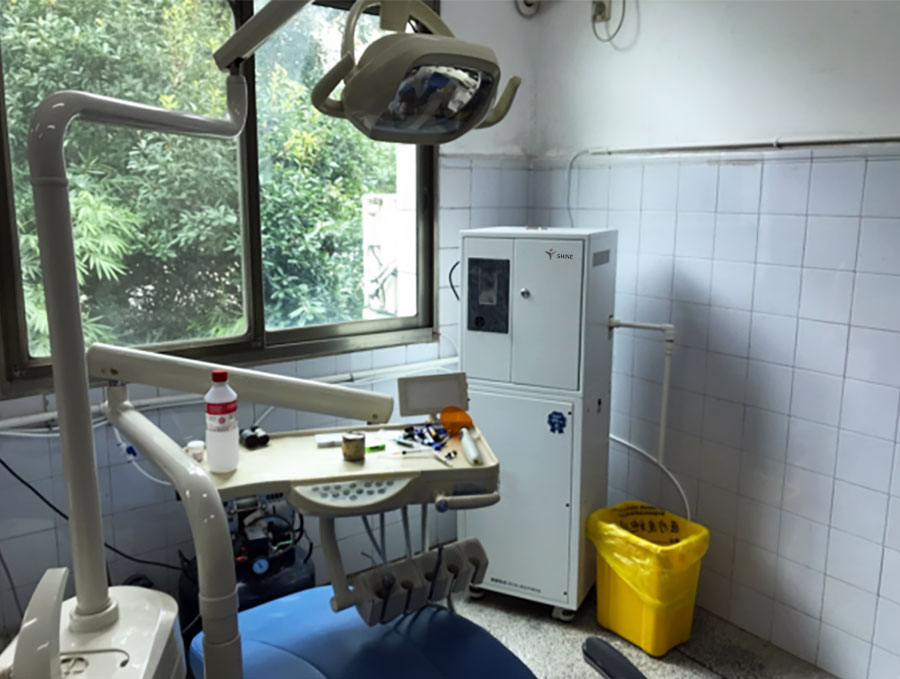

2. Hospital: outpatient room, infusion room, inpatient ward, office, etc.

3. Office:Telephones, Faxes, Printers, Keyboards, and Mouses etc.

4. Kitchen: Kitchenware, Cookware, Vegetables and Fruits etc.

5. Object surfaces : door handles, window handles, countertops, tables and chairs, handrails, faucets, outer walls of tea buckets,

elevator handrails, elevator buttons, secondary water supply equipment and facilities, etc.

6. Air disinfection: disinfection and deodorization of indoor and outside air.

7. Cleaning tools: towels, rags, mops, buckets, brushes, etc.

8. Personal hygiene: hands, skin and mucous membranes.


Products Parameter:


Concentration PPM3-500ppm
Flow5L/min
Available chlorine concentration3-500mg/L
Power requirementsAC220V 50Hz
Power300W
Current setting value0.1-2.2A
Electrolytedilute HCL
Water inlet pressure0.15Mpa---0.25Mpa
Electrolyzer life6000 hours
Size450*350*1300mm





Available chlorine concentration testing video


pH value testing video



Our Factory:


Factory of hypochlorous acid generator.jpg

Shipment of Hypochlorous Acid Generator.jpg


Qualification Patent:


Qualification patant of Hypochlorous Acid Generator.jpg
