Medical HOCL Generator Machine

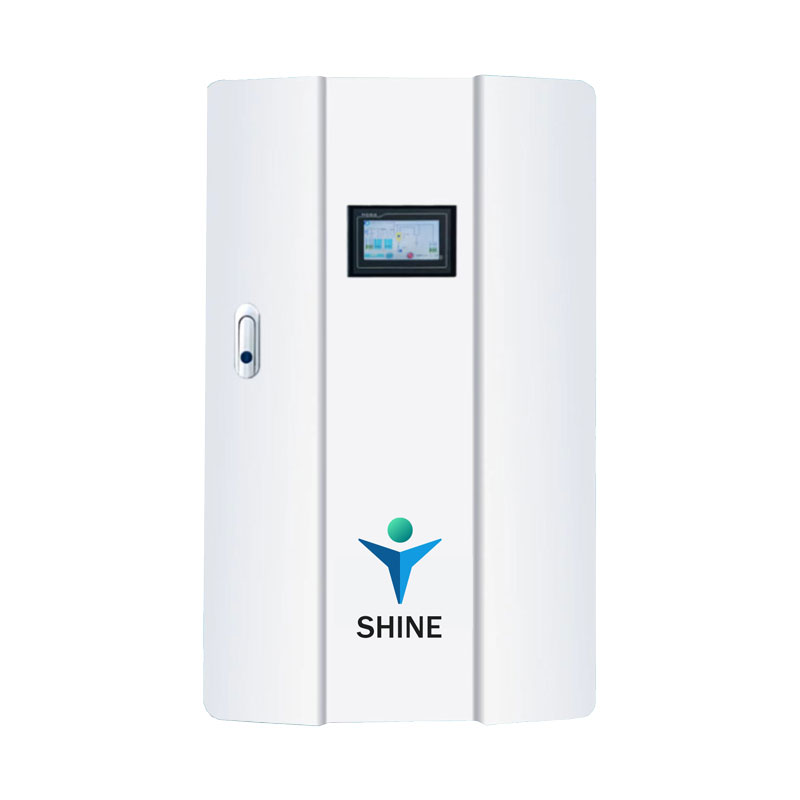

SHC-300S Hypochlorous Acid Generator


SHC-300S Hypochlorous Acid Generator is using the self-developed membrane  electrochemical technology, the safe, effective, non-toxic, non-irritating and environmentally friendly hypochlorous acid disinfection water in the range of 3-500ppm can be quickly and efficiently prepared in 1-3 seconds after starting the machine.


Model No.:                   SHC-300S

Water Production:        300L/hour

Concentration PPM:     50-500ppm

PH Concentration:        2.0-6.5

ORP:                             >800mv


  Contact Now
Product Details

Hypochlorous Acid Generator  SHC-300S

hypochlorous acid water maker.jpg



Advantage:


* Safe:

In completely compliance with the national standards from <Hygienic requirements for disinfectants with chlorine>, <Hygienic requirements for acidic electrolyed water generator>.


* Efficient:

1) Sterilization rate 99.99%;

2) Sterilization time: within 1minute.


* Environmently Friendly:

1) The pH value is between 5-6.5, it is slightly acidic, colorless, non-irritating, non-toxic, safe, harmless and no harm to the skin;

2) It ends with water.


*Convenient and Economic:

Open and use, cleaning and disinfection two-in-one


*Multiple Functions:

Sterilization, preservation, deodorization, pesticide residue removal, biofilm removal


Scope of Application:   Medical system

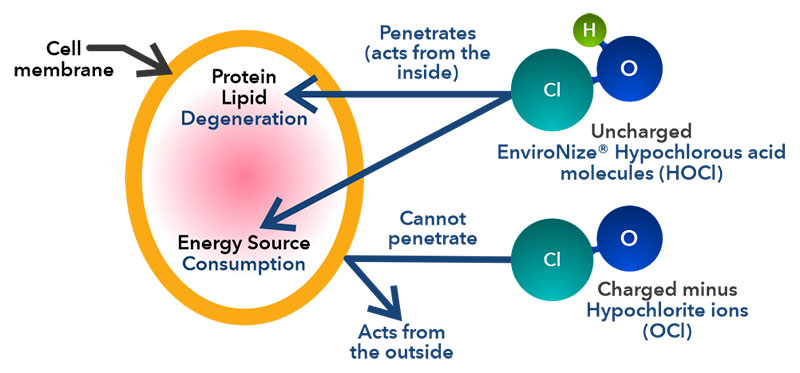

Hypochlorous Acid is well-known as a powerful and safe disinfectant agent that effectively controls contamination of viral, bacterial and fungal transmission. It is a powerful oxidizing agent. In aqueous solution, it dissociates into H+ and OCl–, denaturing and aggregating proteins. HOCl also destroys viruses by chlorination, by forming chloramines and nitrogen-centered radicals. This results in single and double-stranded DNA breaks, rendering the nucleic acid useless, and the virus harmless.


Hypochlorous acid Generator.jpg


SHINE systems are compact and easy to install.  Systems are designed to generate Hypochlorous Acid Water on-site and on-demand from an additive made yourself with just HCL and water.

Hypochlorous Acid can replace quaternary ammonium (Quats), chlorine bleach, and toxic chemicals used to sanitize hospitals.


slightly hypochlorite generator.jpg




Easy-to-use and has multiple applications


1. Hypochlorous Acid Water can be used to sanitize stethoscopes, blood pressure cuffs, and other medical instruments between patients.


Hipochlorous acid generator medical disinfection.jpg


2. Hypochlorous Acid Water can be used to sanitize contact surfaces, equipment, floors and bathrooms. It does not cause discoloration of floors as seen with chlorine bleach.




3. Fogging or misting rooms, hallways, cafeterias, waiting rooms, etc.




4. Water makes a great hand sanitizier as it is non-irritant and gentle on hands.


Commercial hypochlorite generator.jpg




Product application video



Products Parameter:


Concentration PPM50ppm-500ppm
HOCl output300L/hour
Available chlorine concentration50ppm-500mg/L
ORP>800mv
Power requirementsAC220V 50Hz
Power0.35-3.2kw
Current setting value0.1-2.2A
ElectrolyteNaCl
Water inlet pressure0.15Mpa---0.25Mpa
Machine warranty1 year
Size600*500*1500mm






Available chlorine concentration testing video


pH value testing video



Our Factory:


Factory of hypochlorous acid generator.jpg

Shipment of Hypochlorous Acid Generator.jpg


Customers Visiting:

Shipment of Hypochlorous Acid Generator.jpg



Qualification Patent:


Qualification patant of Hypochlorous Acid Generator.jpg
