Sodium hypochlorite generator circulating water in power plants

Product Details

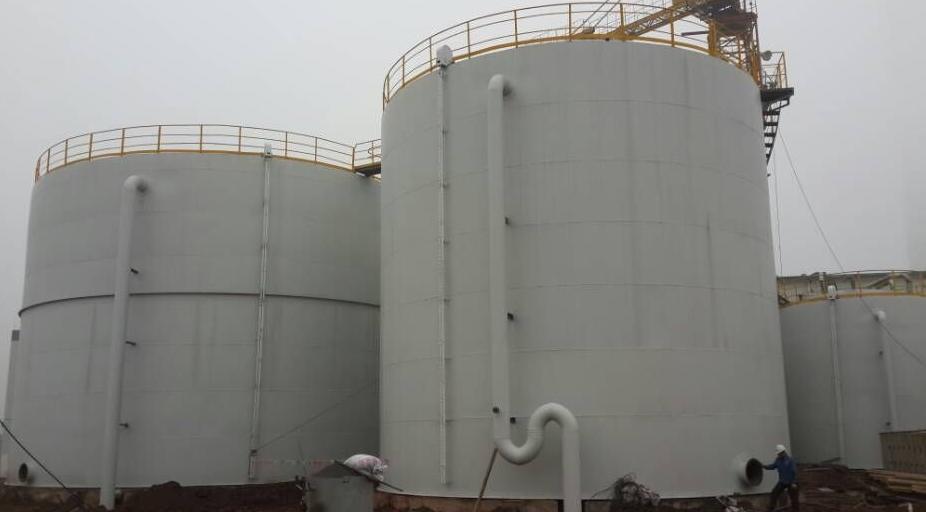

The sodium hypochlorite generator is also a commonly used equipment in the circulating water of power plants. Currently, the circulating water treatment in power plants mostly uses open cooling towers to cool the circulating water. During the cooling process, a large number of algae microorganisms and halophilic bacteria are generated due to external factors, seriously affecting the normal cooling function of the circulating water. So it is necessary to use fungicides such as sodium hypochlorite for the algae removal treatment of circulating water.

Product parameter

Effective chlorine production: 50-400000g/H

Effective chlorine concentration: 3-10g/L

Installed power: 0.3-90KW

Host size: customized

Delivery cycle: 25 days

WhatsApp:+86 19953182842

Email: henry@hoclshine.com

Product advantage

-At present, there are over 80 types of fungicides used in the treatment of circulating water in domestic power plants. It can be divided into two categories,

one is oxidizing fungicides, including chlorine dioxide, sodium hypochlorite, liquid chlorine, etc; Another type is non oxidizing fungicides, including

chlorophenols, organic amines, organic sulfides, etc. Among these circulating water disinfectants, sodium hypochlorite is commonly used. However, the

chemical properties of sodium hypochlorite are not very stable, and it is prone to photodegradation and self decomposition. Therefore, in order to meet

the sterilization treatment of circulating water, sodium hypochlorite generators are currently used to prepare finished sodium hypochlorite disinfectants on site.

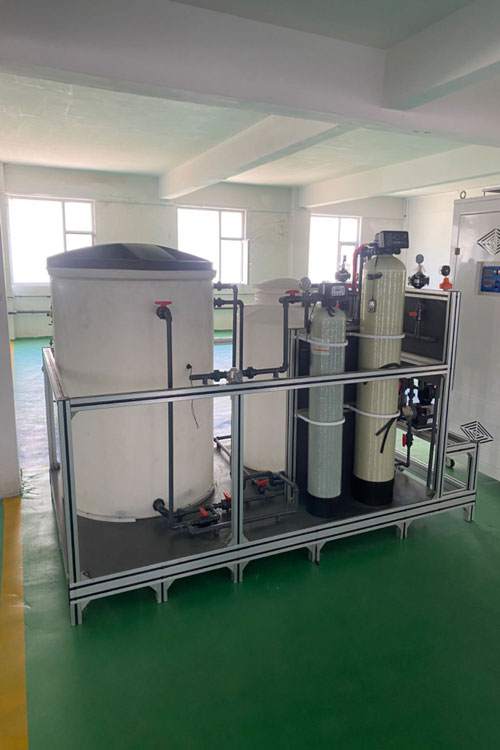

-The sodium hypochlorite generator is a device that produces sodium hypochlorite disinfectant by electrolyzing salt water. The sodium hypochlorite generator

adopts electrolysis method, and the concentration of the sodium hypochlorite disinfectant produced can reach 6000-8000ppm, which can be used as an

algal removal agent in the treatment of circulating water in power plants. By this point, we have learned that the role of the sodium hypochlorite generator

in the treatment of circulating water in power plants is to sterilize and remove algae, avoiding the occurrence of blockage in the circulating water.

-After the above introduction, we believe that everyone already knows the application of sodium hypochlorite generator in the treatment of circulating

water in power plants. In addition, we also remind users that excessive and single use of sodium hypochlorite oxidizing circulating water treatment agents

can cause algae to develop resistance in the water. Therefore, in order to improve the treatment effect, we suggest that users combine multiple water

treatment methods to remove algae and enhance the effectiveness of circulating water treatment.

Process Flow Diagram

Qualification certificate
