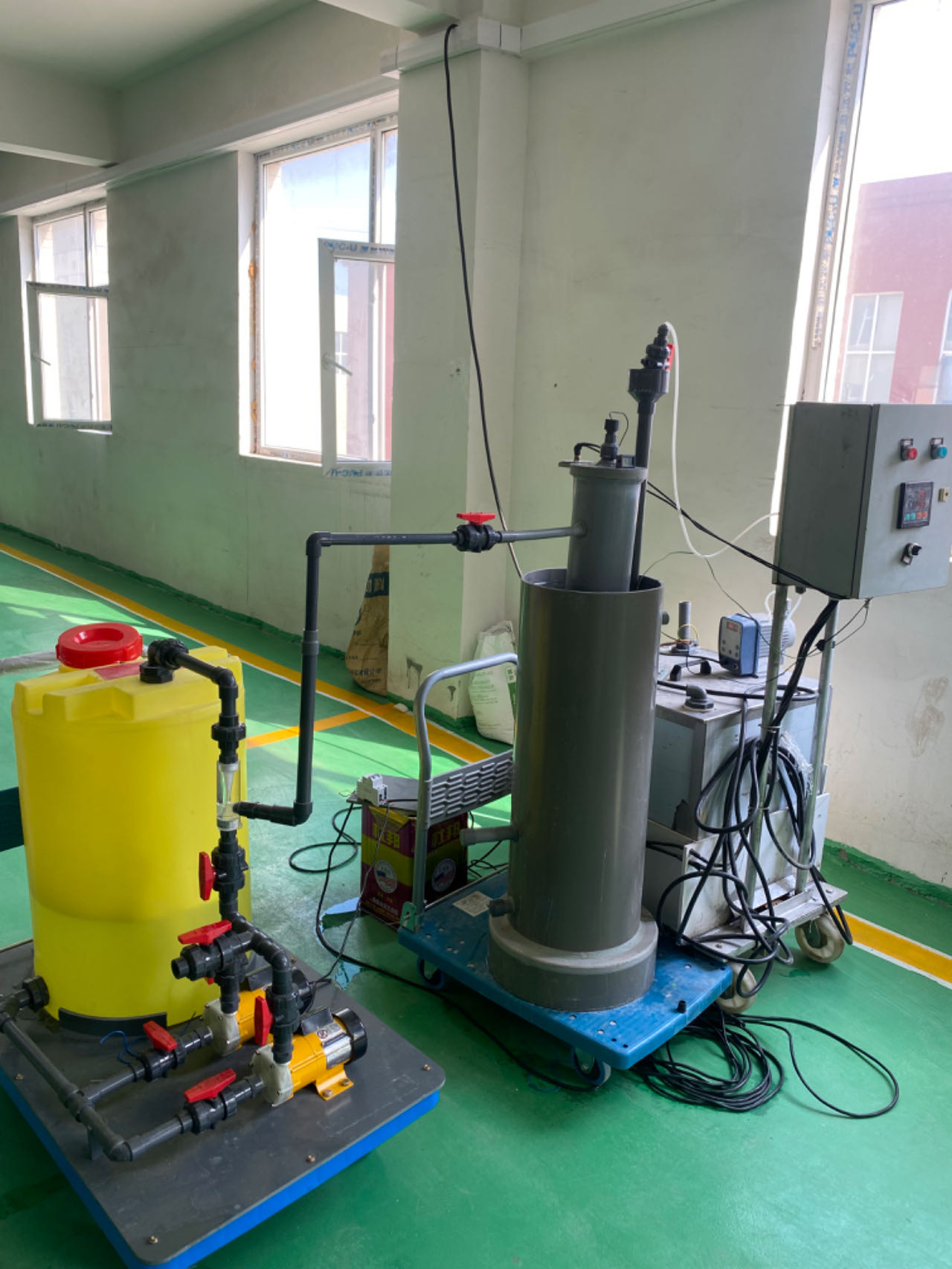

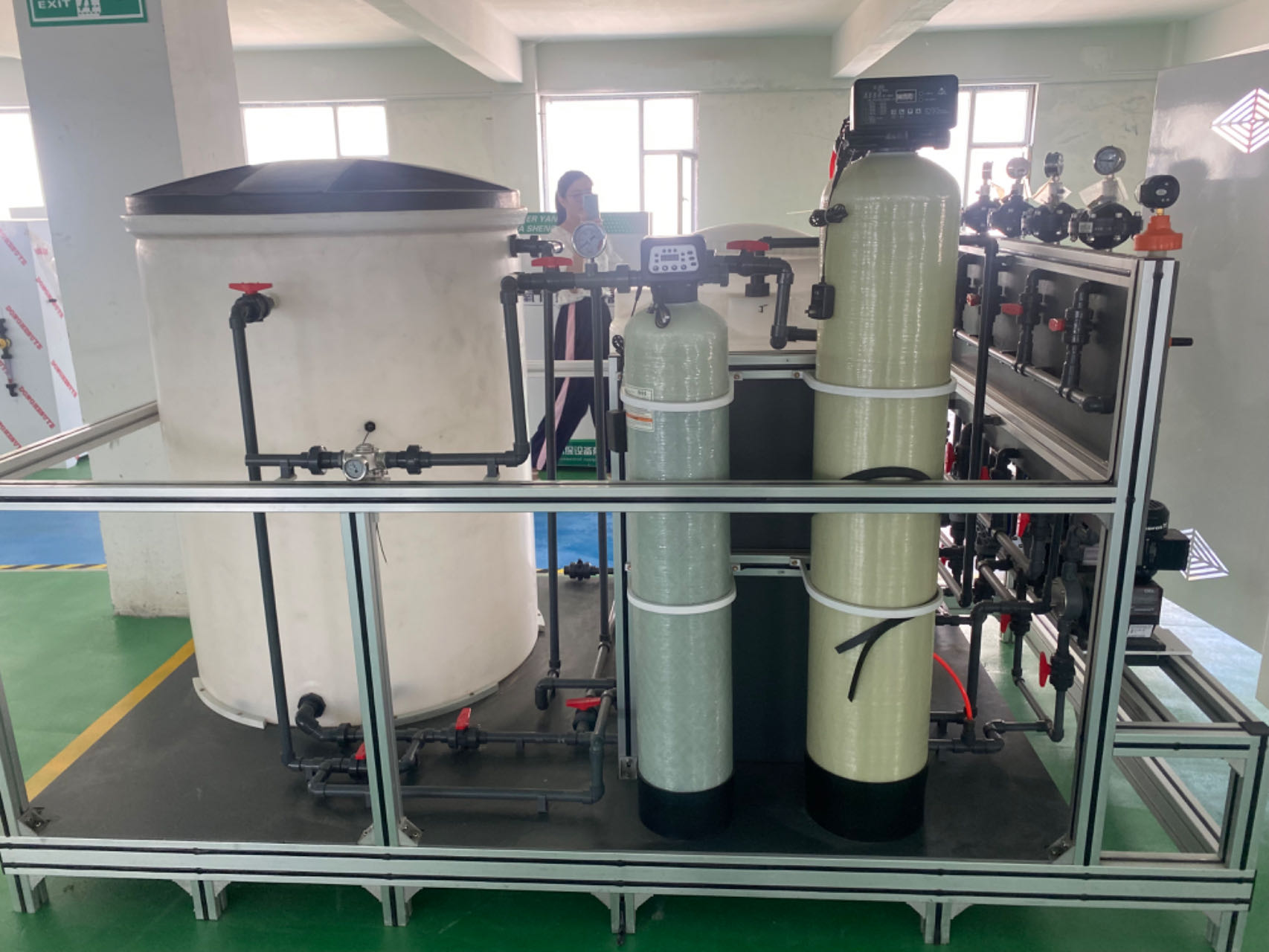

Sodium hypochlorite generator pre-treatment system

Product Details

The pre-treatment water softener and salt dissolving system can be automatically adjusted according to different yields.

Product parameter

Effective chlorine production: 50-15000g/H

Effective chlorine concentration: 8-10g/L

Installed power: 0.3-90KW

Host size: 1600 * 1000 * 2000mm

Delivery cycle: 25 days

WhatsApp:+86 19953182842

Email: henry@hoclshine.com

Product advantage

1、Tap water flows into the water softener, and calcium and magnesium plasma are removed through resin separation technology to generate soft water.A portion of the generated soft water enters the clean water tank and a portion enters the salt dissolving tank.

2、The large sodium hypochlorite generator is equipped with an automatic salt feeding machine, while the small integrated machine manually feeds salt. The salt dissolving tank will mix soft water and table salt to a saturated salt water ratio of 26%.

3、Soft water and saturated salt water pass through a ratio system to form a solution with a concentration of 2.5% -3%, which enters the electrolysis system.

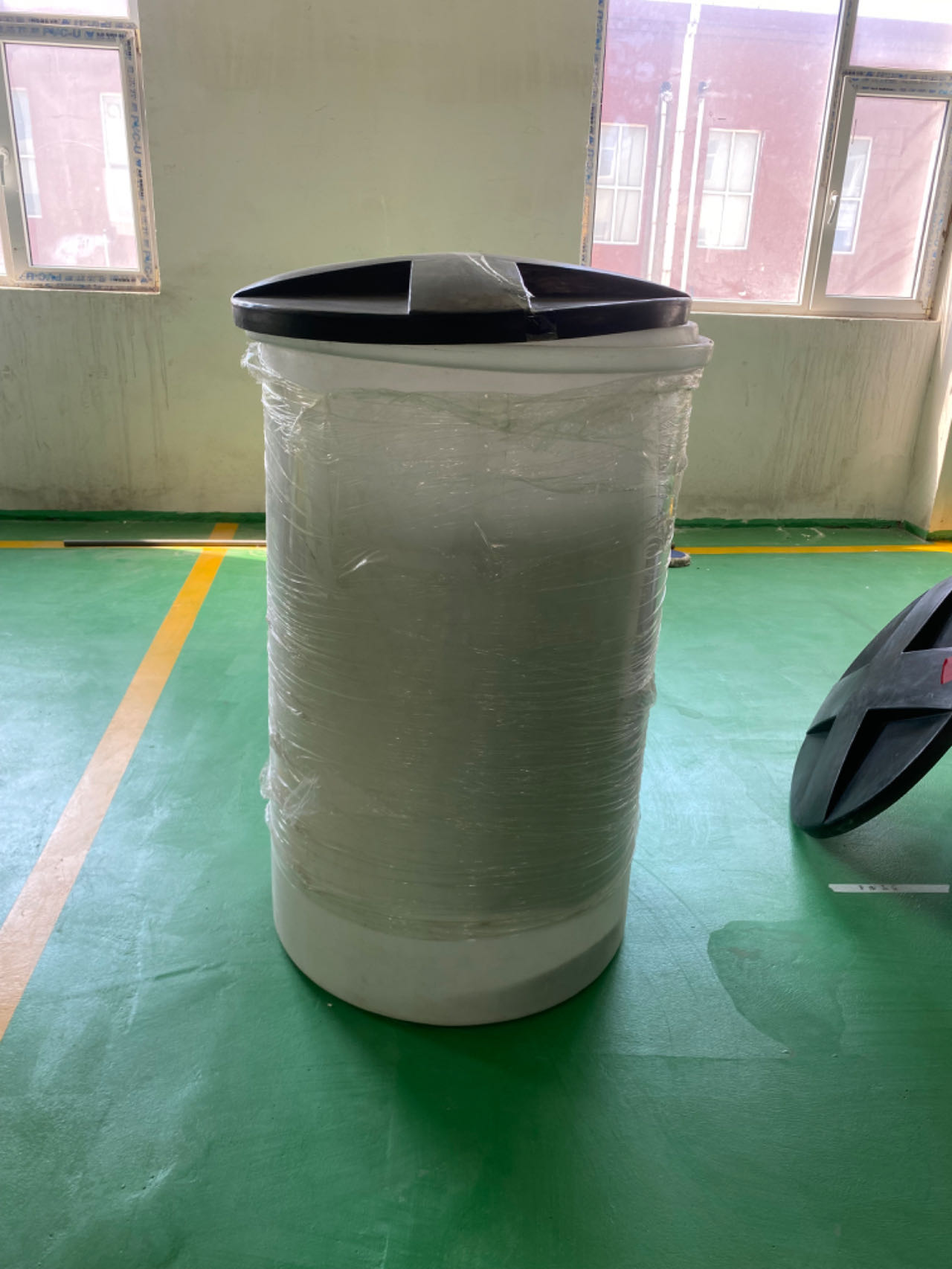

4、The salt dissolving system is a uniform brine concentration storage tank with backwashing function, which has good salt dissolving effect, low energy consumption, automatic backwashing to reduce crystallization and extend service life.

5、The salt water proportioning system automatically controls the proportioning amount and monitors the concentration of salt water in real-time, automatically correcting it to ensure stable and efficient operation of electrolysis.

Qualification certificate

Application Scenario

Factory appearance
