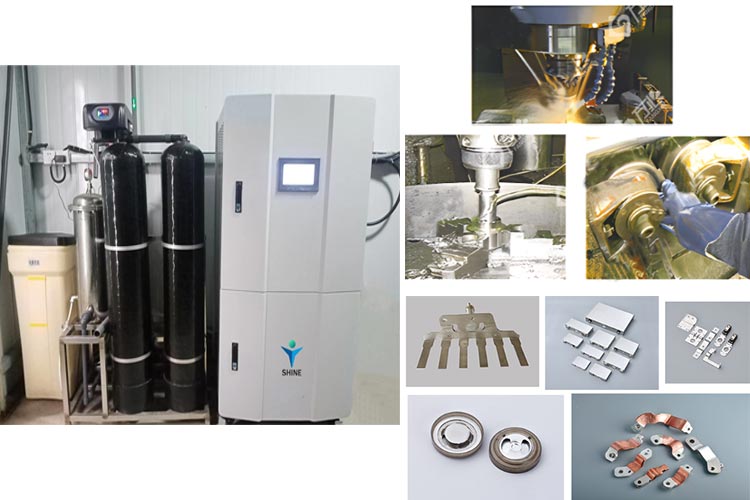

Super alkaline electrolytic water generator for industrial cleaning

Super alkaline electrolytic water generator is our independent research and development and production,using the international advanced parts,automatic operation, intelligent connection of varioud cleaning equipment, potassium carbonate as electrolytic raw material,PH value in 10-14 potassium hydroxide solution,with strong oil removal,rust prevention function

Product parameter

Power supply:220V/50Hz

Generator power:1.6Kw

Softened water or Purified water:Purified water is best, less than 100PPM

Inlet water pressure:0.1~0.3Mpa

Water temperature:10~35℃

Installation and operating environment temperature:10~35℃

Humidity:<80%

Atmospheric pressure:70Kpa~106Kpa

Electrolyte:Potassium carbonate

Solution ratio:Saturated potassium carbonate solution

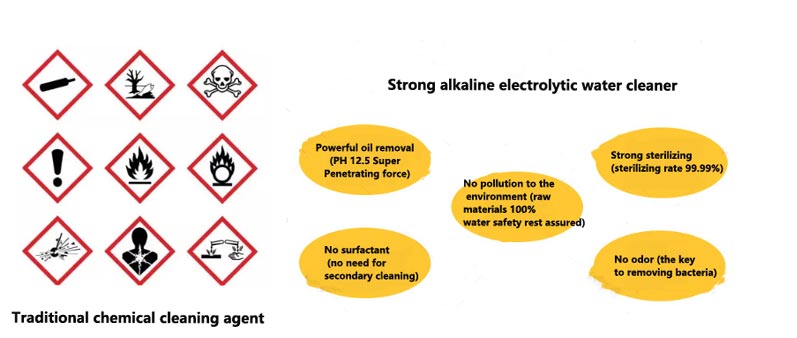

As we all know, in the industrial field, parts and finished products must be cleaned after mechanical processing to remove oil stains on the surface of parts. In the past, chemical cleaning agents such as caustic soda or other volatile cleaning agents were usually used. The volatile cleaning liquid used in the factory, the cleaning and drying process will make the volatile gas diffuse in the air, once met with an open flame will immediately cause explosion. And chemical cleaning agent in the cleaning project will produce a lot of waste liquid, direct discharge will bring great pollution to the environment, waste liquid treatment will also increase the cost of enterprises. Caustic soda is highly corrosive and produces high heat when dissolved in water. Once the human skin is in contact with it, it will feel strong irritation, causing burns and threatening the personal safety of the operator. And the traditional cleaning agent after use also need to use water to clean the parts again, and the super alkaline electrolytic water is non-toxic, no corrosion, no smell, no flammable, no pollution to the environment, and has a good oil and rust prevention effect, after the parts can be dried directly without cleaning again, not only can simplify the process, save production costs, At the same time, it can be reused under the condition of maintaining a certain alkalinity and PH value, and after use, the removal residue can be naturally reduced and safely discharged

The super alkaline water generator adopts diaphragm electrolytic cell. After softening or purifying the tap water, it enters the electrolytic cell for electrolysis and forms super alkali water (OH-) ionized water around the cathode. This small molecule ionized water has low surface tension and still has strong permeability at room temperature

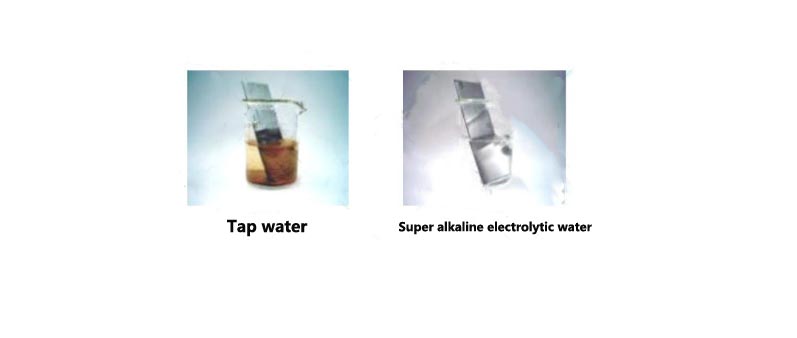

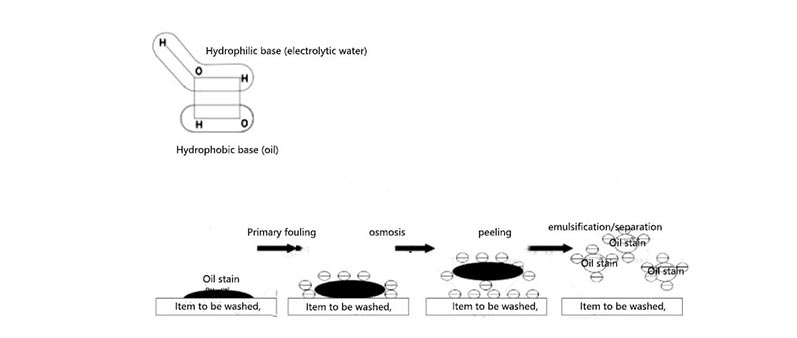

The principle of removing oil is: The oil stain is attached to the surface of the material, and the fine water molecules after electrolysis invade the gap between the oil stain and the surface of the material. The hydrophilic H-O-H (alkaline electrolytic water) combines with the hydrophobic H-O (attached oil), so that the oil and water form a molten state. And coated with oil stains electrolytic water negative ions and negative ions on the surface of the material repulsion (most pollutant ions have a strong negative potential, and many of the surface of the object to be cleaned also has a negative charge), so the oil attached to the surface of the cleaned object will be quickly emulsified and separated from the attachment. Generally speaking, cleaning metal with water is bound to rust, and another major characteristic of super alkaline electrolytic water is its anti-rust effect. The super alkaline electrolytic water has a high negative REDOX potential, which forms a protective film on the surface of the attached metal and plays a role in rust prevention.

Because the super alkaline electrolytic water without any corrosive, no harm to the human environment, waste liquid discharge no environmental pollution, can be used for any cleaning oil occasions, its cleaning, safety, economic efficiency are other cleaning agent incomparable, the use of super alkaline electrolytic water to remove oil can greatly reduce the rinsing process, thereby reducing the cost of cleaning and sewage treatment. In addition to rust removal function, super alkaline electrolytic water can also be used as the coolant of cutting and grinding machine, to change the oil pollution caused by the cooling oil of the factory in the past, so that the factory air and use environment can be improved. Super alkaline electrolytic water does not contain any carbon elements, does not contain any organic matter, its use is completely free from the restrictions of environmental protection policies, is the real green products, and the cost is lower than the traditional cutting oil, but also has the function of rust prevention.

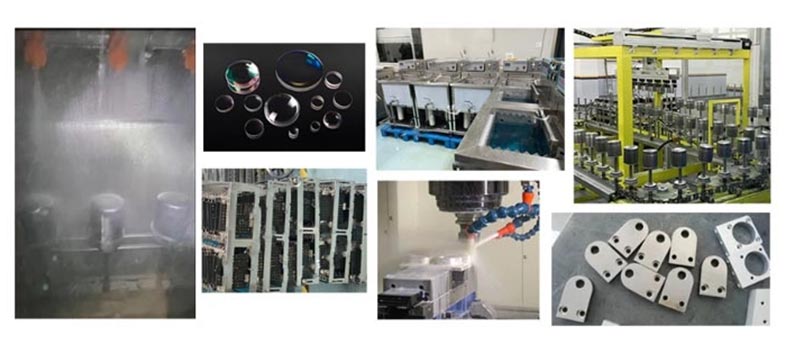

Super alkaline electrolytic water can also be used for military industry, nuclear industry, optical lenses, glass and liquid crystal panels and other precision cleaning. And the super alkaline electrolytic water because of its higher PH value, can hydrolyze the protein and nucleic acid of pathogenic bacteria, destroy the normal metabolic function of bacteria, bacteria death, in order to achieve the role of physical sterilization
