Ultra-pure water, EDI ultra-pure water equipment,suitable for hospitals

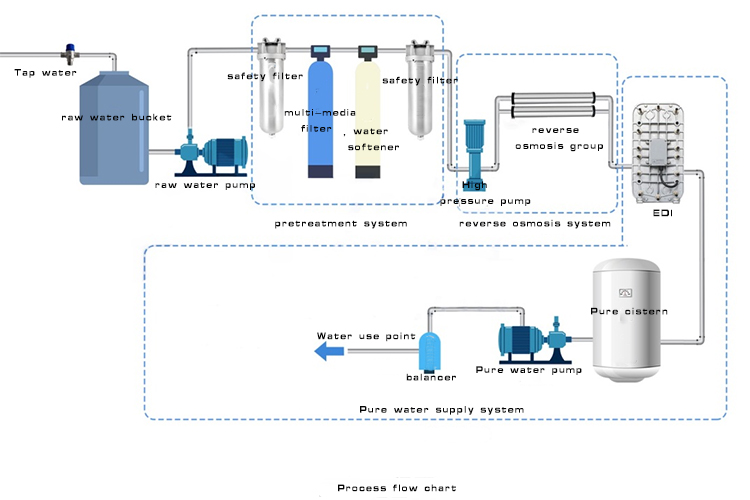

The overall process of ultra-pure water EDI reverse osmosis system is composed of four parts,the first part is the pre-treatment system,the second part is the reverse osmosis +EDI system,the third part of the water supply balance system and the fourth part of the electronic control system

Product parameter

• Name : pretreatment system,multi-media filtration

• Resin tank:material:Lined with PE liner, wrapped with FRP(black,not easy to grow bacteria)

• Automatic filter valve:power:10W

• Filter material:Material:quartz sand,activated carbon

• Softening filter section

• Resin tank:Meterial:Lined with PE liner,wapped with FRP (black,not easy to grow bacteria)

• Automatic softening valve:Power:10W

• Filter material:100-C strong acidic cationic resin

• Salt box:Material:PE(square)

• Original pump:stainless steel horizontal multistage pump,power:0.75Kw

• Safety filter section

• Filter:material:304 stainless steel

• Melt-blown filterelement:Filtration

• Accuracy:5μm

• Reverse osmosis host system part

• Main solenoid valve:Material : stainless steel

• High pressure pump:head:116m.Power:5.5Kw

• Reverse osmosis membrabe housing:stainless steel

• EDI power supply:Adjustable current and voltage

• Flow meter:pure water:18GPM

• Concentrated water:28GPM

• Pressure gauge:Range:3Mpa and 1Mpa

• Pure water supply system part

• Pure water pump:power:0.55Kw,material:304 stainless steel

• Pressure controller:Control range:0.14-0.28Mpa

• Pressure pack:PE health grade,pressure:0.6Mpa

• Pure water tank:Volume:3000L,material:sanitary stainless steel,with respirator

• Electronic control system section

• Controller:Control mode:PLC automatic control

• Man-machine interface:touch screen

• Data acquisition module:2.0 specifications

• Electrical components:AC contactor,thermal protection,leakage protection,relay

• System piping:clamp stainless steel

• Host appearance:Cabinet:Rack type

Product advantage

EDI uses well-known brabds,stable water production,EDI membrane ion exchange technology,ion exchange membrane technology and ion electromigration technology combined pure water manufacturing technology. It cleverly combines electrodialysis and ion exchange technology, using high pressure at both ends of the electrode to move charged ions in water, and with ion exchange resin and selective resin film to accelerate the removal of ion movement, so as to achieve the purpose of water purification. It has advanced technology, simple operation and excellent environmental protection characteristics, is the green revolution of pure water preparation technology.

Machine performance

The whole system adopts PLC control, automatic operation, no manual intervention, when the equipment appears water pressure, water leakage and other problems will issue an alarm, if necessary, automatic shutdown protection. Visual display of various possible faults, sound and light alarm, and self-protective shutdown if necessary. Man-machine interface can dynamically display the overall operating status, pressure, pure water flow, wastewater flow, raw water conductance, RO conductance, water temperature, high pressure and many other parameters (optional) at a glance.
